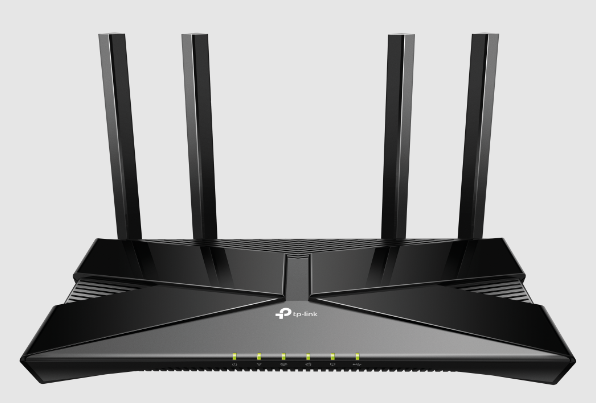

Description: The image above displays the front/top panel of a TP-Link EX510 router
Hardware
Interface: : 4 10/100/1000 Mbps RJ45 LAN Ports, 1 10/100/1000 Mbps
RJ45 WAN Port, 1 USB 3.0 Port
Buttons: Power On/Off Button, Reset Button, Wi-Fi/WPS Button
External Power Supply: 12V/1.5A
Dimensions (W x D x H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)
Antenna Type: : 4 High-Performance External Antennas
Software
Operation mode: Router Mode, AP Mode
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)/Bridge
Management: Access Control, Local Management, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143, Aginet APP
DHCP: Server, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Server: PPTP, OpenVPN, IPSec
VPN Pass-through: IPSec, PPTP, L2TP
Access Control: Parental Control, Local Management, Host List, White List, Black List
Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
Protocols: IPv4, IPv6
USB Sharing: Supports Storage/FTP Server/Media Server
Multi-SSID: Up to 4 SSIDs for each band(including main SSID)
TX Beamforming
MU-MIMO
DL/UL OFDMA
Airtime Fairness
Others
System Requirements:
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Environment:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
AX3000 Dual-Band Wi-Fi 6 Router EX510
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Warranty: 3 years carry-in. For more details please refer here.
