Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |

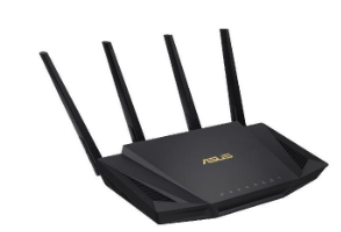

Product Segment | AX 3000 (2402Mbps+574Mbps) |
Coverage | Large homes |
Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 2402 Mbps |
Antenna | External antenna x 4 |
Transmit/Receive | 2.4 GHz 2 x 2
5 GHz 2 x 2 |
Processor | 1.5 GHz tri-core processor |
Memory | 256 MB Flash
512 MB RAM |
Wi-Fi Technology | OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth |
Operating Frequency | 2.4 GHz / 5 GHz |
Encryption | WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Enterprise, WPS support |
Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter |
Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
VPN Support | IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client |
WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1 |
Features | Router app
MU-MIMO
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network :
VPN server : PPTP Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
Roaming Assist
OFDMA
Beamforming |
Button | WPS Button, Reset Button, Power Switch |
LED Indicator | Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1 |
AC Input : 110V~240V(50~60Hz) | AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current |
OS Support | Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8 |
Dimensions | 224 x 129 x 160 mm (LxWxH) |
Weight | 538g |
Operation mode | Wireless router mode
Access point mode
Media bridge mode |
