TP-Link EX221-G2u Router Specifications

Router Technical Specifications

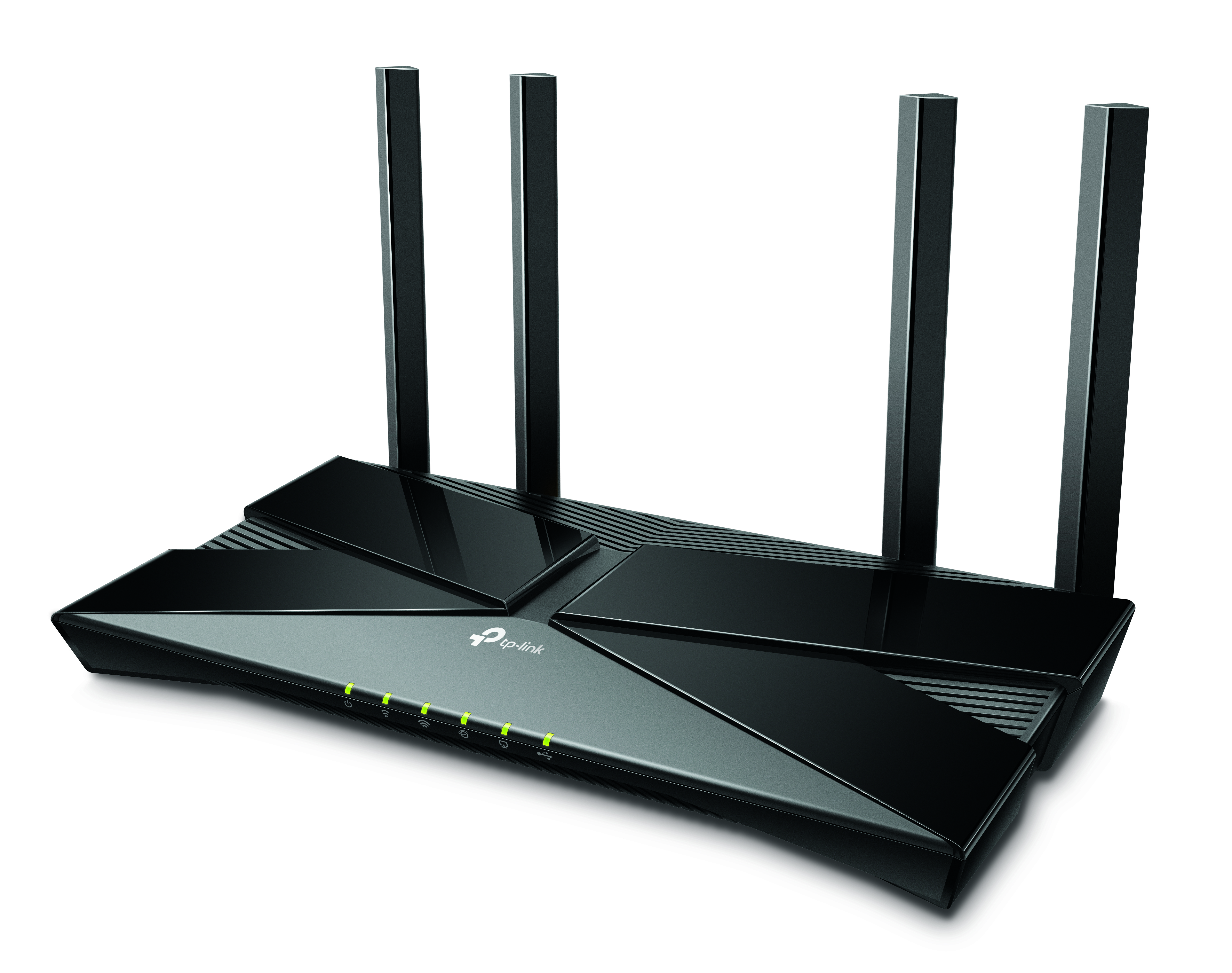

Description: The image above displays the front/top panel of a TP-Link EX221-G2u router

Hardware

• Interface: 4 10/100/1000 Mbps RJ45 LAN Ports, 1 10/100/1000 Mbps RJ45 WAN Port, 1 USB 2.0 Port

• Buttons: Power On/Off Button, Reset Button, Wi-Fi/WPS Button, LED Button

• External Power Supply: 12V/1.5A

• Dimensions (W x D x H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)

• Antenna Type: Four External antennas

• Antenna Gain: 2 x 4dBi for 2.4 GHz and 2 x 5dBi for 5 GHz

Wireless

• Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz

• Frequency: 2.4 GHz and 5 GHz

• Signal Rate: 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz

• Transmit Power:

  • CE: FCC:Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless StatisticsWireless Security: WPA/WPA2, WPA-PSK/WPA-PSK2 encryptionsWireless Schedule: Support 2.4 GHz and 5 GHz Wireless Schedule

    Software

    • Operation mode: Router, Access Point

    • Quality of Service: Hardware QoS, Flow Classification

    • WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)

    • Management: Access Control, Local Management, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143

    • DHCP: Server, DHCP Client List, Address Reservation

    • Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

    • Dynamic DNS: DynDns, NO-IP

    • VPN Server: PPTP, OpenVPN, IPSec

    • VPN Pass-through: IPSec, PPTP, L2TP

    • Access Control: Parental Control, Local Management, Host List, White List, Black List

    • Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

    • Protocols: IPv4, IPv6

    • Multi-SSID: 4 SSIDs for each band(including main SSID)

    • TX Beamforming

    • MU-MIMO

    • DL/UL OFDMA

    • Airtime Fairness

    Others

    • System Requirements:

    • Microsoft Windows 98SE/NT/2000/XP/VistaTM/7/8/8.1/10, MAC OS,

    • NetWare, UNIX or Linux

    • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

    • Java-enabled browser

    • Subscription with an internet service provider (for internet access)

    • Environment:

      • Operating Temperature: 0°C~40°C (32°F ~104°F)

      • Storage Temperature: -40°C~70°C (-40°F ~158°F)

      • Operating Humidity: 10%~90% non-condensing

      • Storage Humidity: 5%~90% non-condensing

    • Package Contents

      • AX1800 Dual-Band Wi-Fi 6 Router EX221-G2u

      • Power Adapter

      • RJ45 Ethernet Cable

      • Quick Installation Guide

    Warranty: 3 years from the point of purchase/installation. For more details please refer here.
