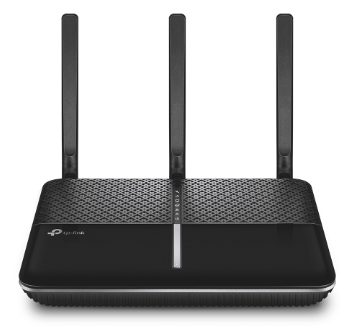

Description: The image above displays the front/top view of a TP-Link EC330 router.
HARDWARE FEATURES
Interface: 4 10/100/1000Mbps RJ45 LAN Ports, 1 10/100/1000Mbps RJ45 WAN Port, 1 USB 3.0 Port
Button: Power On/Off Button, Reset Button, WPS Button, Wi-Fi On/Off Button, LED On/Off Button
External Power Supply: 12V/2A
Dimensions (W x D x H): 8.5 × 6.45 × 1.44 in (216.0 x 164.0 x 36.8 mm)
IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab
Antenna: 3 external antennas, 1 internal antenna
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 1300Mbps at 5GHz, 600Mbps at 2.4GHz
Transmit Power:
CE: FCC: <30dBm
Wireless Function:
Enable/Disable Wireless Radio
WDS Bridge
WMM
Wireless Statistics
Airtime Fairness
Band Steering
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Wireless Schedule: Support 2.4GHz and 5GHz Wireless Schedule
SOFTWARE FEATURES
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)
DHCP: Server, Client, DHCP Client List, Address Reservation
Quality of Service: WMM, Bandwidth Control
Port Forwarding: Virtual Server, Port Triggering, DMZ, UPnP
VPN Passthrough: PPTP, L2TP, IPSec
VPN Server: PPTP, OpenVPN
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
USB Sharing: Supports Samba(Storage)/ FTP Server/ Media Server
Management: Access Control, Local Management, Remote Management, TR-069,TR-098,TR-111
OTHERS
Package Contents:
AC1900 Wireless Dual Band Gigabit Router EC330-G5u
Power Supply Unit
RJ45 Ethernet Cable &
Quick Installation Guide
Certification: CE, FCC, RoHS
System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
Environment:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
