The router's LEDs are located on the top panel. You can check if the router is working based on the LED Explanation table below.

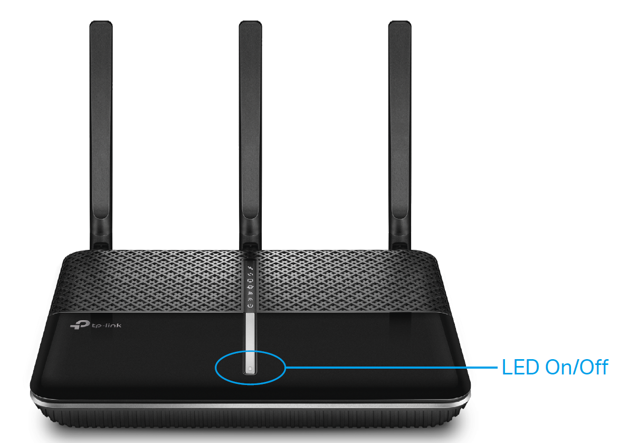

Description: The image above displays the top and front panel a TP-Link EC330 router.

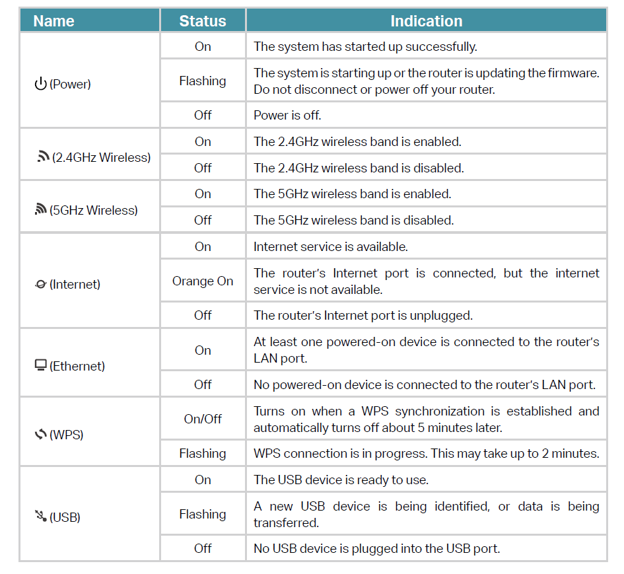

Description: The image above displays the icons and light indicators of a TP-Link EC330 router.

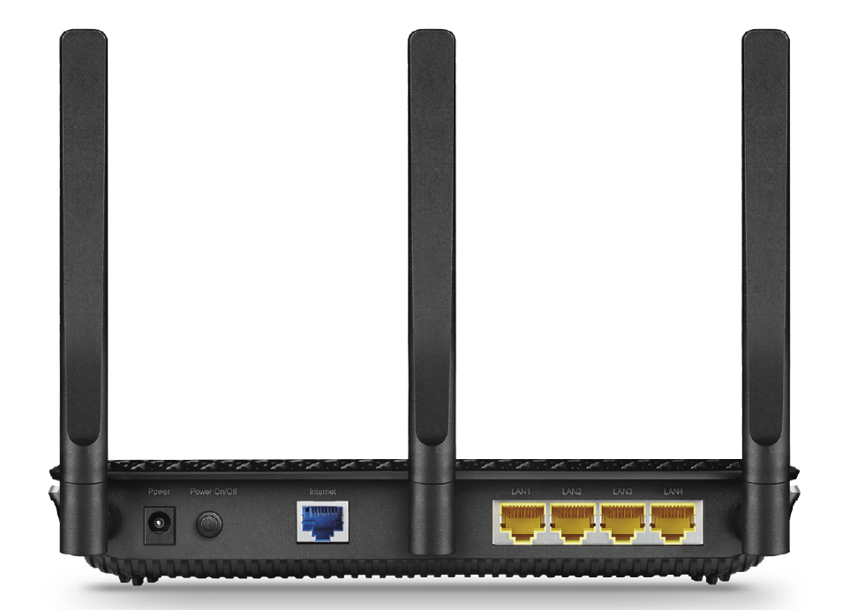

Description: The image above displays the buttons, ports and antennas on the back panel of icons of a TP-Link EC330 router.

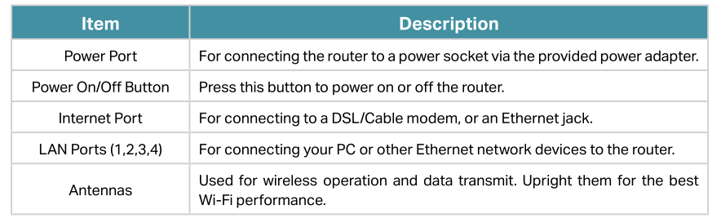

Description: The image above displays the descriptions of the ports, button & antennas of a TP-Link EC330 router.

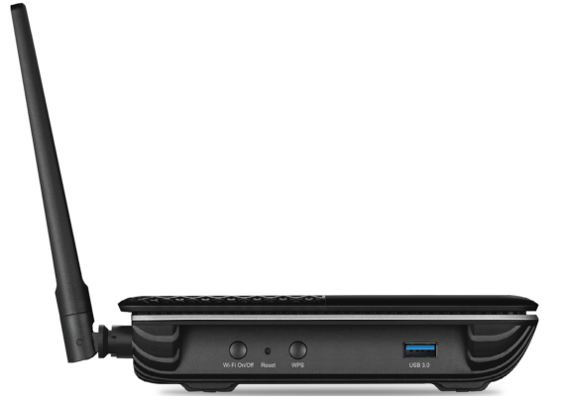

Description: The image above displays the buttons and ports on the side panel of a TP-Link EC330 router.

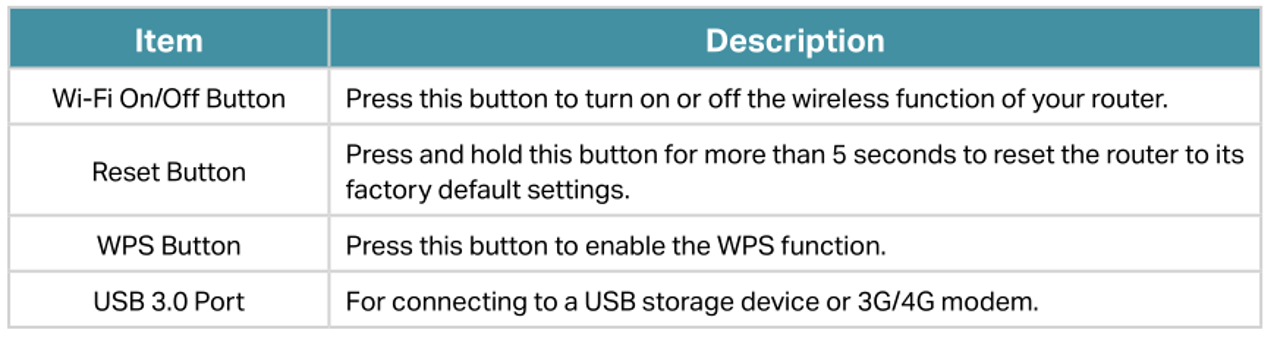

Description: The image above displays the description of the buttons and ports of a TP-Link EC330 router.
