Router Technical Specification

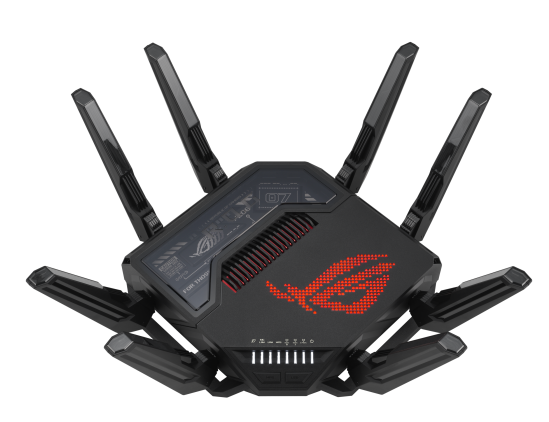

Description: The image above displays the front/top view of a ROG Rapture GT-BE25000 router.
ROG Rapture GT-BE25000
Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps
Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength
Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games
Subscription-free network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
GT-BE25000
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
External antenna x 8
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
6GHz 4x4
2.6GHz quad-core processor
256 MB Flash and 2 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth
2.4 GHz / 5 GHz / 6 GHz
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0
WPS Button, Reset Button, Power Switch, LED control Button
WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz x1 5GHz-1 x 1 5GHz-2 x 1 2.4GHz x1 Power x1
AC Input : 110V~240V(50~60Hz) DC Output : 19.5 V with max. 3.33 A current
GT-BE25000 quad-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card
2000 g
350.41 x 350.41 x 220.6 mm
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game Boost / Acceleration
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming Port
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Operating system : ASUSWRT
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Disclaimer
WiFi 7 features require WiFi routers and client devices with WiFi 7-supported operating systems to support the corresponding features.
6GHz band is limited to indoor range. Clients must support 6GHz band.
The 320 MHz in the 6 GHz band may be unavailable in some regions / countries due to regulatory restrictions.
If no 6 GHz SSID is displayed, please check whether your OS and client device are fully licensed to support the 6 GHz band.
The Multi-link Operation feature require a WiFi 7 capable device. Firmware support for Multi-link Operation (MLO) is in development and will be released in late 2023 or early 2024.
Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
Quoted network speeds and bandwidth based on current IEEE 802.11ac/ax/be specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be same standard for best results.
WPA/WPA2/WPA3 enterprise is only available on single router, is not available under AiMesh mode.
Due to the different power supply requirements on USB external hard disk and 4G/5G Modem device, to ensure that the external device can be used stably, if the USB external device exceeds the standard USB 2.0 (5V/500mA) and USB 3.1 Gen 1 (5V/900mA) power supply requirements, you need to use it with an independent external power supply.
If you use the product in conjunction with a third-party service, you are responsible for complying with the third-party provider's terms and conditions and privacy policy and are also at the risk of such use. ASUS does not provide support or guarantee continuous integration support for products that are not part of ASUS.
When traditional QoS is enabled, there will be limitations due to the actual Internet service bandwidth and different environment, and there may be a risk of speed reduction.
ASUS makes no representations or warranties about this product’s compatibility with future standards
MU-MIMO capability requires both router and client device to support MU-MIMO.
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
